Objects

This page lists some of the objects you can create with the gridfinity_build123d library. Due to the modularity it is impossible to list everything. Don’t let these examples be the end of your imagination.

Bins

Bin

source

Bin(
    Base(), height_in_units=4,
)

CompartmentsEqual

source

Bin(
    Base(),
    height_in_units=4,
    compartments=CompartmentsEqual(
        div_x=2,
        compartment_list=Compartment(Label()),
    ),
)

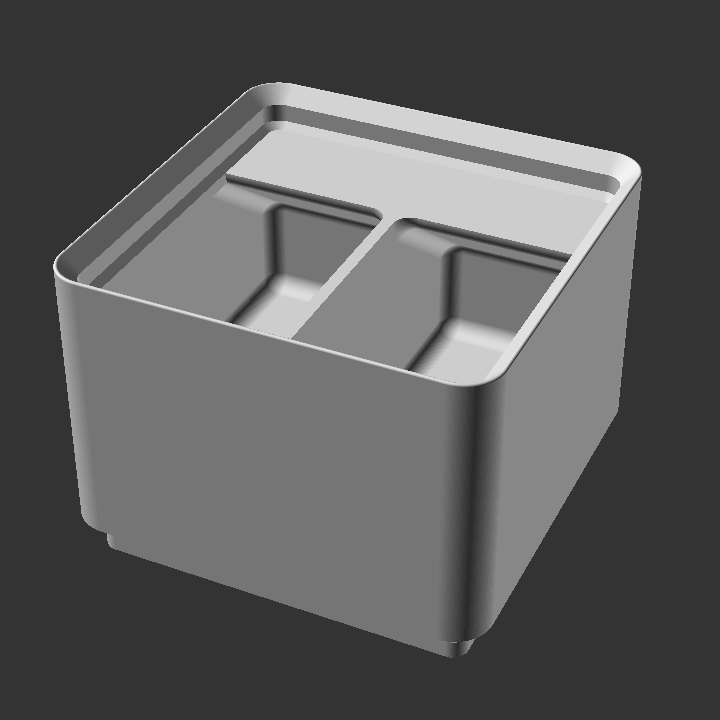

StackingLip

source

Bin(
    Base(),
    height_in_units=4,
    compartments=CompartmentsEqual(
        div_x=2,
        compartment_list=Compartment(Label()),
    ),
    lip=StackingLip(),
),

BasePlates

BasePlateEqual

source

BasePlateEqual(
    size_x=2,
    size_y=2,
)

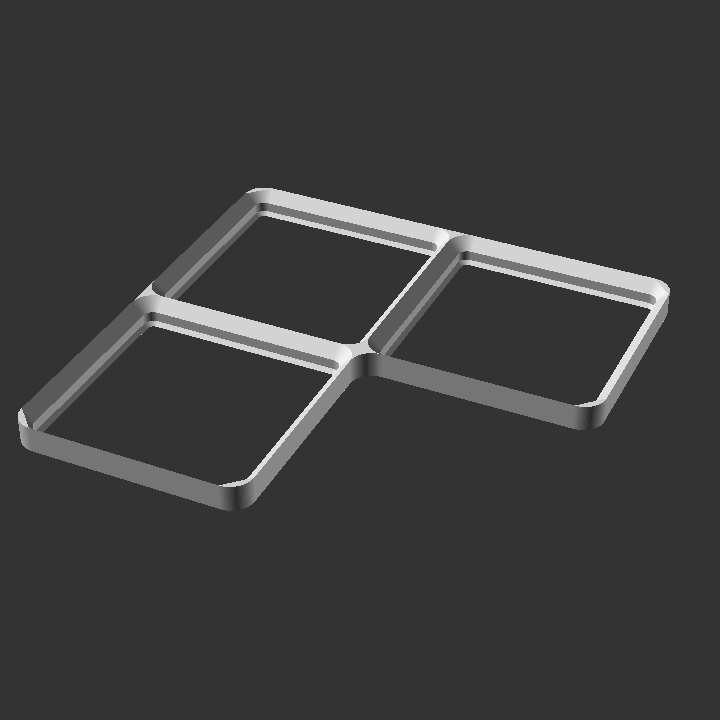

BasePlate

source

BasePlate([[True,True],[True]])

BasePlateBlockFull

source

BasePlateEqual(
    size_x=2,
    size_y=2,
    baseplate_block=BasePlateBlockFull(),
)

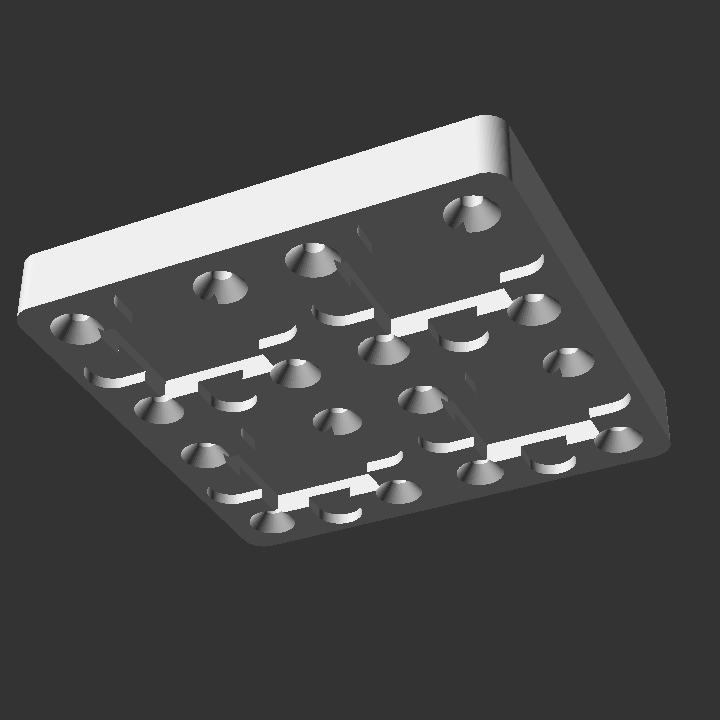

BasePlateBlockFull

source

BasePlateEqual(
    size_x=2,
    size_y=2,
    baseplate_block=BasePlateBlockFull(),
)

Bases

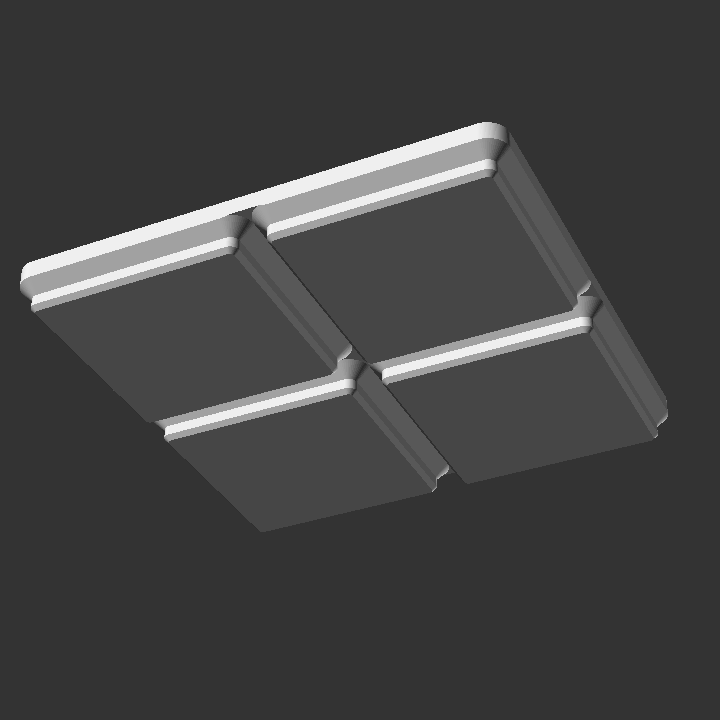

BaseEqual

source

BaseEqual(
    grid_x=2,
    grid_y=2,
)

Base

source

Base([[True,True],[True]])

BaseBlock

source

BaseEqual(2, 2, [MagnetHole(
    BottomCorners()),
    ScrewHole(BottomCorners(),
    )])
